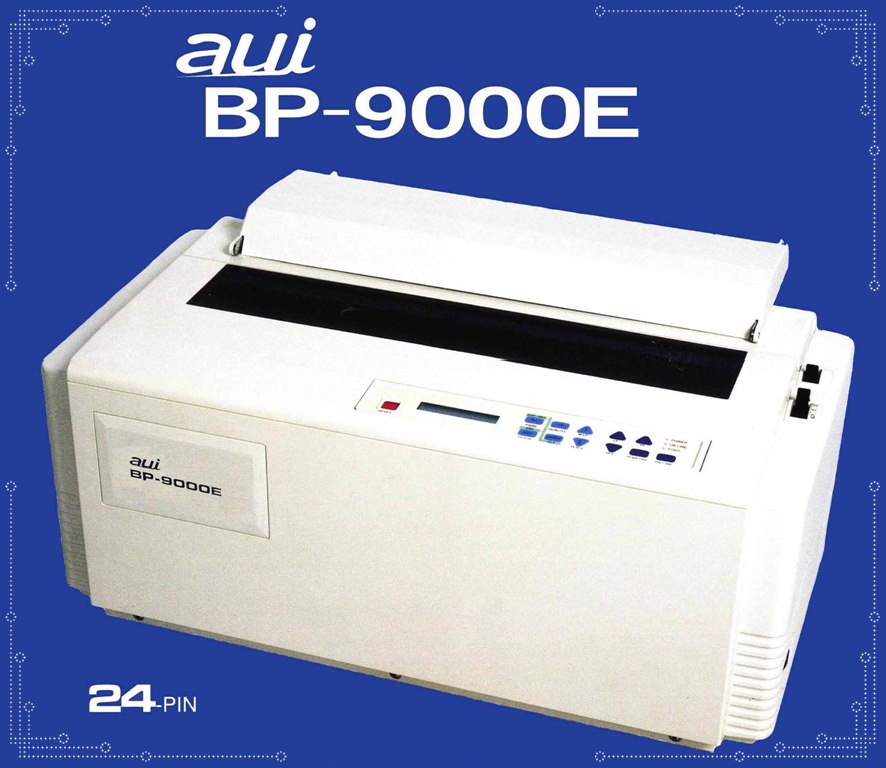

AUI Seikosha BP9000

This printer means business!

A Dot matrix printer that meet the highest demands in quality and speed

The 24-pin BP-9000 from Seiko Precision is a high-performance state -of-the-art
dot matrix printers and suitable for BP-9000 fanfold papers, cut sheets, envelopes,
labels and multiple forms.
This printer achieves a speed of up to 840 characters per second (Super Speed Draft
Mode). As well as being extremely fast, it is also highly economical: a single ribbon
cartridge can print up to 20 million characters. Typically, these printers are used in the
retail trade, in industry and in banking.

To increase their versatility even further, the BP-9000 has a push tractor for
fanfold paper at the rear and optionally a Pull Tractor or a cut sheet feeder (expandable
by ASF 300 E) for top-feeding operation.
Paper management is further enhanced by the printers' Intelligent Label Mode, which
prevents labels from peeling off. The Auto Scroll function allows automatic positioning
of the paper perforation against
the tear-off-edge.

Large number of fonts, bar code printing and up to 8 duplicates.

The BP-9000 offers a total of 10 resident letter-quality fonts, thus giving you a large
number of design options for your correspondence and your printed matters. The
printer has the 13 most important types of bar codes: Industrial 2 of 5, Interleaved
2 of 5, Matrix 2 of 5, Codabar, Code 11, Code 3 of 9, Code 93, Code 128, EAN-8,
EAN-13, UPC-A, UPC-E and Postnet, so that your forms and labels can be read
correctly at all the times.

For multiple copies, the BP-9000 lets you print up to 8 duplicates. This saves you not
only a lot of copying, but also a good deal of printing.

Convenient to use, with many interfaces.

The BP-9000 is refreshingly simple, thanks to the innovative 2-level menu system
(no DIP switches) which displays selections on a 16-digit LCD panel in 5 languages
(English, French, German, Spanish and Italian).
You can even store three configurations for instant recall. These models have auto
section parallel Centronics and serial RS-232C interfaces, with the option of adding
IBM Coax, Twinax, Ethernet and Token Ring.

Datasheet:

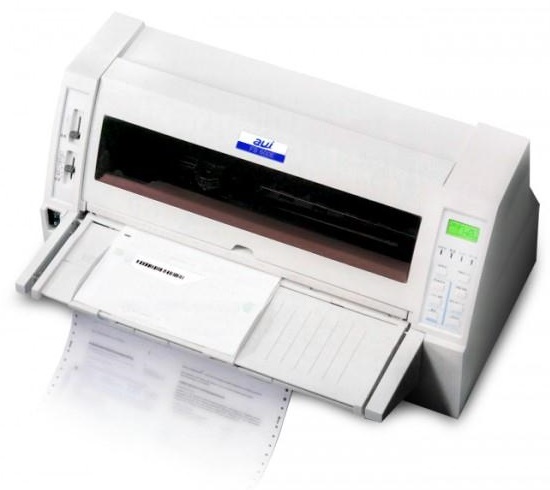

AUI Seikosha FB600

Best printer for any job!

The FB-600 from SEIKO Precision is a particularly economic flatbed dot matrix
printer for printing various media of different sizes. For this purpose, it has an
automatic paper thickness sensor for materials up to 2 mm thick. The flexible
paper feed is supported by a similarly automatic paper alignment system for
precise results. Its high printing speed makes the FB-600 suitable for use in
the most varied of business areas, because it makes equally light work of
printing courier waybills or sets of forms as it does of printing on A4 paper.

Printing method : 24-pin dot matrix printer ( flatbed) , bidirectional (text and
graphics)

Printing speed:

  • 600 cps/ 15 cpi ( SSD) , 400 cps/ Pica ( Draft) ,
  • 300 cps/ HQDR ( Pica) , 150 cps/ LQ ( Pica)
  • Paper feed : push tractor ( front/ back) , friction feed
  • Cut sheet format : continuous paper front/ back 203.2-381 mm,
  • individual sheets manual/ automatic: 182-430 mm
  • Multiple sets : original plus 6 duplicates ( DARK Copy Mode) ,
    original plus 4 duplicates ( Normal Mode)
  • Optional : individual sheet feed or second tractor

Datasheet:
